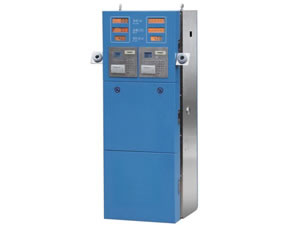

Skid-Mounted Gas Dispenser
Description:
Skid-mounted CNG dispenser, a kind of dedicated dispensers, is installed in the skid of mobile secondary filling station compressor or CNG trailer. The skid-mounted CNG combination filling station can directly fill vehicles by using the natural gas stored in the skid. It is mainly made up of chassis, computer measurement and control system, mass flow meter, solenoid valve, pipeline and gas filling gun etc. A mobile CNG compressor for daughter station, CNG trailer and skid-mounted CNG dispenser can constitute a complete functional skid-mounted CNG combination filling station. Skid-mounted CNG dispensers can be delivered with wooden case. Only professional or trained staffs are allowed to operate the CNG dispensers.
Properties:
1. With back light display panel, the skid-mounted CNG dispensers can keep low temperature.
2. The skid-mounted CNG combination filling station displays filling volume and amount.
3. LCD lights show data clearly even in dark ambient
3. There is no accuracy loss during the process of transforming quality pulse to volume display.
4. Accumulated amounts and unit price can be stored more than 10 years in memory.
5. 8000 times of gas filling can be recorded and stored more than 10 years.
6. Skid-mounted CNG combination filling station can still work 1 hour in the case of unexpected power off during the process of gas filling.
7. Contactless IC card can be used for staff management.
8. Password protection is available.
9. The skid-mounted CNG dispenser with explosion-proof box to ensure security.
Parameters:
| ITEM | DESCRIPTION |
| Max pressure | 25 MPa |
| Rated working pressure | 20 MPa |
| Compressive Strength | 37.5 MPa |
| Flow range | 1-25 kg/min/nozzle |
| Accuracy | Grade one |
| Working temperature | -25℃-- +55℃ |
| Operation & Display | With black-light, stainless keypad with menu and short-cut button. To show Unit price, filling volume and price |
| Display for per filling | 0-9999.99 |
| Total display | 0-999999.99 m³ or Yuan Customized Unit available |
| Volume display | 1-9999(m³) Customized Unit available |
| Density setting | 0.0001-0.9999 |
| Unit Price setting | 0.01-99.99(Yuan/m³) Customized currency available |
| Price display accuracy | +/- 0.01(Yuan)Customized currency available |
| Pull-off valve | Pull-off force 400N-600N (pull off safety, shut on/off the gas source) |
| Power supply | 220VAC(+10%~-15%) 50HZ+-1% |
| Humidity | 5%-9% |
| Rated power | <300W |
| Nozzle | NGV-1/12mm |
| Approx. size | 2100×980×510 (mm) |
| Anti-explosion mark | ExdemibⅡAT3 for whole machine |
| ExdibⅡAT5 for PC control system |
Founded in October 2006, Chongqing Anran Gas Technology Co Ltd. is a professional manufacturer and supplier of CNG equipment and technology in China. Our main gas products are as follows: natural gas compressor, CNG dispenser, CNG conversion kits, generator sets, etc. We have received the qualified certificate of CNG dispenser. We possess a powerful technology research and development team to enhance our capabilities and ensure the quality of products like skid-mounted CNG combination filling station.
